FEATURES & PROPERTIES :
Meets the requirement of CENELEC HD 22.1.S2, DIN
VDE 0282 PART 810, IEC 245, CEI 20-19 & BS 6007, BS 6899.
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, acids, chemicals,
ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties.
APPLICATION :
For continuous use in deep well to supply power to submersible pumps down to depths of 500 mtrs.

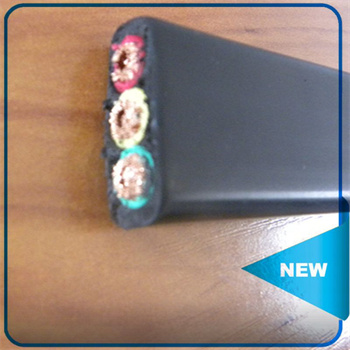

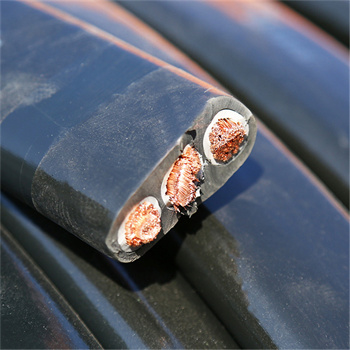

CONSTRUCTION :
Conductor : Finely stranded bare copper flexible conductor.
Insulation : Oil & water resistant thermoplastic rubber,
Sheath : Black heavy duty thermoplastic rubber.

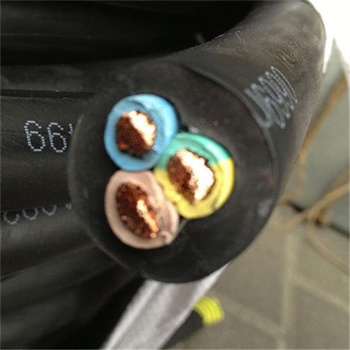

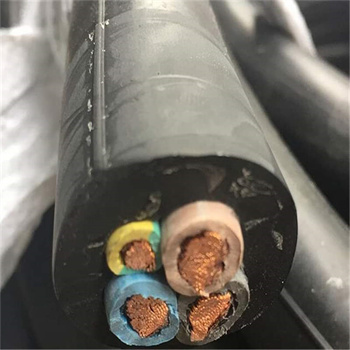

Core Colours :
4core: Red, Yellow, Blue, Green Or Black
4core: Black, Light Blue, Brown, Yellow with green line Or Green with yellow line
| 4CORE FLAT CABLES FOR SUBMERSIBLE PUMPS (1100 VOLTS) | |||||||
| Conductor | Insulation | Sheath | Current
Rating at 40℃ |
||||
| Nominal Area | No. &
Dia. of wire |
Nominal Thickness | Nominal
Core Dia. |
Nominal
Thickness |
Approx.
Overall Dimensions |
||
| Thickness | Width | ||||||
| mm2 | No./mm | mm | mm | mm | mm | mm | Amps. |
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.3 | 6 | 15.8 | 14 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.3 | 6.5 | 18 | 18 |
| 4 | 56/0.30 | 1 | 4.5 | 1.45 | 7.6 | 21 | 26 |
| 6 | 85/0.30 | 1 | 5.3 | 1.5 | 7.9 | 24.3 | 31 |
| 10 | 140/0.30 | 1 | 6.5 | 1.8 | 9.9 | 29.7 | 42 |
| 16 | 226/0.30 | 1 | 8 | 1.95 | 11.8 | 36 | 57 |
| 25 | 354/0.30 | 1.2 | 10.1 | 2 | 14.7 | 45.1 | 72 |
| 35 | 495/0.30 | 1.2 | 11.5 | 2 | 16.2 | 50.1 | 90 |
| 50 | 703/0.30 | 1.4 | 13.6 | 2.2 | 18.3 | 58.1 | 115 |
| 70 | 440/0.45 | 1.4 | 15.3 | 2.2 | 20 | 66.5 | 143 |
| 95 | 475/0.50 | 1.6 | 18 | 2.4 | 23.5 | 77.3 | 165 |
